■ Basic Features



1-DOF Two-Finger Hand

Multi-functional robot hand with 2 fingers powered by 10W DC motor.



Adaptive Gripping Design

Passive Joints enable adaptive gripping for various shapes of objects.



Current Control (Force Control)

Torque control and current-based position control make it possible to pick up objects of various materials.



Light Weight & High Power

5kg of high payload is delivered from 500g light weighted robot hand.



Detachable Finger Tips

Detachable finger tips can be easily replaced with customized finger tips.



Intuitive and Simple Mounting

The robot band can be quickly mounted on ROBOTIS Manipulator.

Simplified design enables easy mounting on custom applications.



Dynamixel 2.0 Protocol

The robot hand supports DYNAMIXEL 2.0 protocol for easy control.

Power and communication are connected via DYNAMIXEL BUS.





■ Package Contents



Description Quantity
Robot Hand RH-P12-RN 1
Frame FRP54-A110 1
Screw WB M3x8 20
Cable Robot Cable-X4P 180mm 1
Robot Cable-X4P 180mm (Convertible) 1





■ H/W Specifications



MCU ST CORTEX-M4 (STM32F405 @ 168Mhz, 32bit)
Position Sensor Contactless Absolute Encoder (12bit, 360°)
Motor Coreless
Baud Rate 9,600 bps ~ 10.5 Mbps
Control Algorithm PID Control
Degree of Precision 0.088°
Operating Mode Current Control Mode
Current based Position Control Mode
Weight 500g
Stroke 0 ~ 109mm
Gear Ratio 1295.7 : 1
Maximum Gripping Force 170N
Recommended Payload 5kg
Operating Temperature -5°C ~ 55°C
Nominal Voltage 24V
Command Signal Digital Packet
Protocol Type RS485 Asynchronous Serial Communication
(8bit, 1stop, No Parity)
Physical Connection RS485 Multi Drop BUS
ID 0 ~ 252
Feedback Position, Velocity, Current, Temperature, Input Voltage, etc
Material Full Metal Gear, Metal Body
Standby Current 30mA
Peak Current 3.33A





■ Default Settings



ID : 1

Baud Rate : 57600bps

(Please make necessary modifications to ID, baud rate, etc. after purchase)

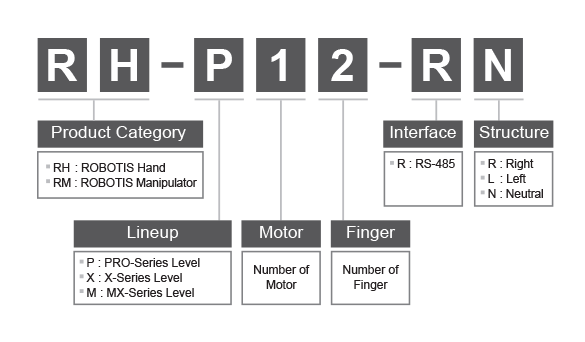

■ Model Numbering
